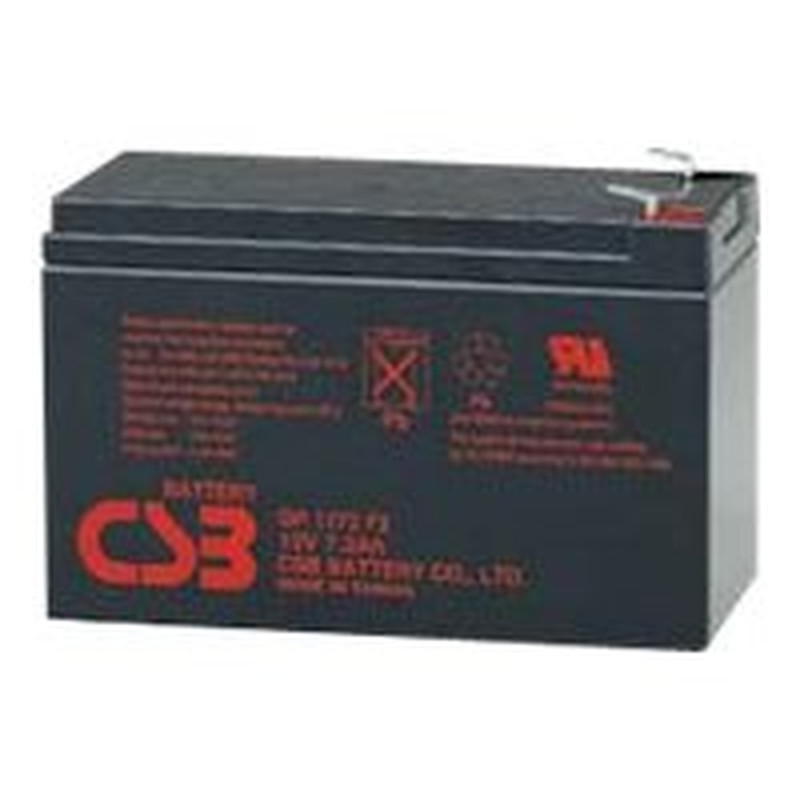

BATERIAS 12V 7AH STD

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Especificaciones
Cells Per Unit	6
Voltage Per Unit	12 V
Capacity	7.2 Ah @ 20hr-rate to 1.75V per cell @ 25ºC (77ºF)
Weight	Approx. 2.40kg. (5.29 lbs.)
Maximum Discharge current	100A/130A (5sec.)
Internal Resistance Approx.	Approx. 23mΩ
Operating Temperature Range	Discharge:-15?~50?(5ºF~122ºF)
	Charge:-15?~40?(5ºF~104ºF)
	Storage:-15?~40?(5ºF~104ºF)
Nominal Operating Temperature Range	25ºC ± 3ºC (77ºF ± 5ºF)
Float charging voltage	13.5 to 13.8 VDC/unit Average at 25ºC (77ºF)
Recommended Maximum Charging current limit	2.16A
Equalization and Cycle Service	14.4 to 15.0 VDC/unit Average at 25ºC (77ºF)
Self Discharge	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25?
Terminal	F1/F2-Faston Tab187/250
Container Material	ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
